APD-4-2G18G-TF Preliminary
4 Way Power Divider

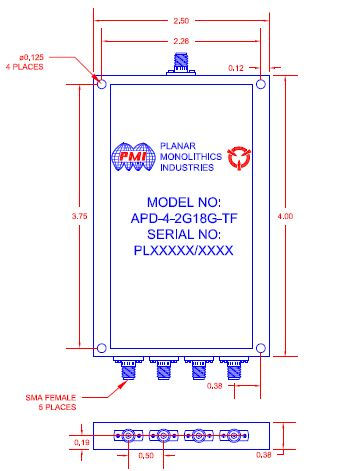

Quantic PMI Model APD-4-2G18G-TF is a 2 to 18 GHz, 4 Way Power Divider having an insertion loss of 2 dB and an isolation of 18 dB. Housing measures 2.5" x 4.0" x 0.38" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 18 dB |
| Insertion Loss (dB): | 2 dB |
| VSWR (In/Out): | 1.5:1 / 1.5:1 |
| Amplitude Balance: | 0.5 dB |
| Phase Balance: | 6° |
| Power Requirments: | 30 W (Forward) |
| Connectors: | SMA Female |
| Size: | 2.5" x 4.0" x 0.38" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | RTCA/DO-160F, Section 6, Category B, Severe Humidity Environment |
| Vibration: | MIL-STD-810F, Method 514.5, Procedure 1, Operational Aircraft-Jet |
| Altitude: | 55, 000 ft, AMSL |
