APD-4-2G26G-292FF-1W Active
4 Way Power Divider
Additional Documents
- Product Feature
- Test Report (-55°C to +85°) - 4/1/19
- Test Report (-55°C to +35°C) - 3/21/19
- Phase vs. Temperature) - 4/1/19
- PL24998 - Unit Data
- PL24999 - Unit Data
- PL25000 - Unit Data
- PL25001 - Unit Data
- PL25002 - Unit Data
- PL25003 - Unit Data
- PL25004 - Unit Data
- PL25005 - Unit Data
- PL25006 - Unit Data
- PL25007 - Unit Data
- PL25008 - Unit Data
- PL25453 - Unit Data
- PL25454 - Unit Data
- PL25455 - Unit Data
- PL24489 - Unit Data
- PL24490 - Unit Data
- PL24491 - Unit Data
- PL24492 - Unit Data
- PL24493 - Unit Data
- PL24494 - Unit Data
- PL24495 - Unit Data
- PL24496 - Unit Data
- PL24497 - Unit Data
- PL24498 - Unit Data
- PL24499 - Unit Data
- PL24500 - Unit Data
- PL24501 - Unit Data
- PL24502 - Unit Data
- PL24503 - Unit Data
- PL24504 - Unit Data
- PL24505 - Unit Data
- PL24506 - Unit Data
- PL24507 - Unit Data
- PL24508 - Unit Data
- PL24509 - Unit Data
- PL24510 - Unit Data
- PL24511 - Unit Data
- PL24512 - Unit Data
- PL24513 - Unit Data
- PL24514 - Unit Data
- PL24515 - Unit Data
- PL24516 - Unit Data
- PL24517 - Unit Data
- PL24518 - Unit Data
- PL24519 - Unit Data
- PL24520 - Unit Data
- PL26789 - Unit Data
- PL26790 - Unit Data
- PL26791 - Unit Data
- PL26792 - Unit Data
- PL26793 - Unit Data
- PL26794 - Unit Data
- PL26795 - Unit Data
- PL26796 - Unit Data
- PL26797 - Unit Data
- PL26798 - Unit Data
- PL26799 - Unit Data
- PL28802 - Unit Data
- PL28803 - Unit Data
- PL28804 - Unit Data
- PL28805 - Unit Data
- PL28806 - Unit Data
- PL29298 - Unit Data
- PL29299 - Unit Data
- PL29300 - Unit Data
- PL29301 - Unit Data
- PL29302 - Unit Data
- PL35538 - Unit Data
- PL35539 - Unit Data
- PL35540 - Unit Data
- PL35541 - Unit Data

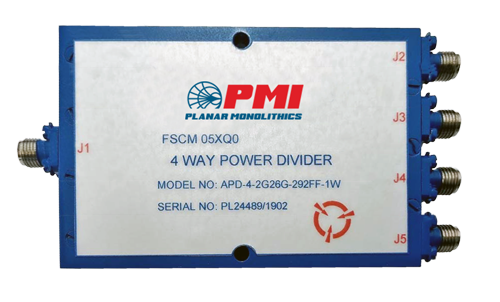

PMI Model APD-4-2G26G-292FF-1W is a 2 to 26 GHz, 4 Way Power Divider that offers a maximum insertion loss of 2.25 dB with a maximum VSWR of 1.7:1, and a minimum isolation of 15 dB. Housing measures 3.0" x 2.0" x 0.375" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 4 Way |
| Frequency Range (GHz): | 2 to 26 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 26 |
| Isolation (dB): | 15 dB Min |
| Isolation (dB) - Measured: | 15 dB Min - Measured 17.8 dB |
| Insertion Loss (dB): | 2.25 dB Max |
| Insertion Loss (dB) - Measured: | 2.25 dB Max - Measured 1.72 dB |
| VSWR (In/Out): | 1.7:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±6° Max |
| Power Handling: | >1 W CW |
| Connectors: | 2.92mm Female |
| Size: | 3.00" x 2.00" x 0.375" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | +10 ºC to +50 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
