APD-4-2G26G-SFF-1W Active
4 Way Power Divider

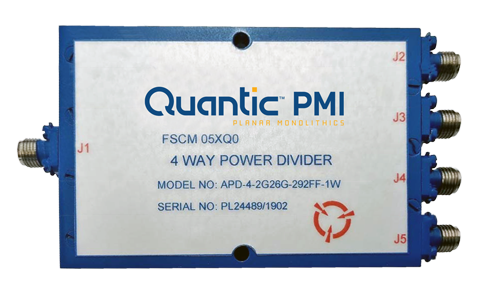

Quantic PMI Model APD-4-2G26G-SFF-1W is a 2 to 26 GHz, 4 Way Power Divider that offers a maximum insertion loss of 2.25 db with a maximum vswr of 1.7:1 and a minimum isolation of 15 dB. The compact housing measures 3.0" x 2.0" x 0.375" and is outfitted with removable 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 4 Way |
| Frequency Range (GHz): | 2 to 26 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 26 |
| Isolation (dB): | 15 dB Min |
| Insertion Loss (dB): | 2.25 dB Max |
| Insertion Loss (dB) - Measured: | 1.69 dB |
| VSWR (In/Out): | 1.8:1 Max |
| Amplitude Balance: | ±0.6 dB Max |
| Amplitude Balance (Measured): | 0.36 dB Max, -0.16 dB Min |
| Phase Balance: | ±7.5° Max |
| Phase Balance (Measured): | 2.07° Max -0.00° Min |
| Reverse Power: | >1 W CW |
| Amplitude Change Over Temperature Range: | <0.5 dB |
| Phase Change Over Temperature Range: | <7.5° Max |
| Connectors: | 2.92mm Female |
| Size: | 3.0" x 2.0" x 0.375" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | +20 °C to +35 °C |
| Humidity: | MIL-STD-202F. METHOD 103B COND. B |
| Shock: | MIL-STD-202F. METHOD 213B COND.B |
| Vibration: | MIL-STD-202F. METHOD 204D COND. B |
| Altitude: | MIL-STD-202F. METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F. METHOD 107D COND. A |
