APD-4-3-292FF-HERM Preliminary
4 Way Power Divider
Quantic PMI Model APD-4-3-292FF-HERM is a four way power divider operating at 3 GHz that has a typical insertion loss of 1 dB maximum and an isolation of 1 dB maximum above the 6 dB theoretical split. The compact housing measures 3.0" x 2.0"" x 0.4" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 3 to 3 |
| Frequency Min (GHz): | 3 |
| Frequency Max (GHz): | 3 |
| Isolation (dB): | 22 dB Min |
| Insertion Loss (dB): | 6 dB Theoretical Split 1 dB Max |
| VSWR (In/Out): | 1.2:1 Max |
| Amplitude Balance: | ±0.2 dB Typ, ±0.5 dB Max |
| Phase Balance: | ±1° Max |
| Average Power: | 25 W (Into 1.2:1 Load VSWR) 7.5 W (Into 2.0:1 Load VSWR) 0.75 W (Into ∞:1 Load VSWR) |
| Connectors: | 2.92mm Female |

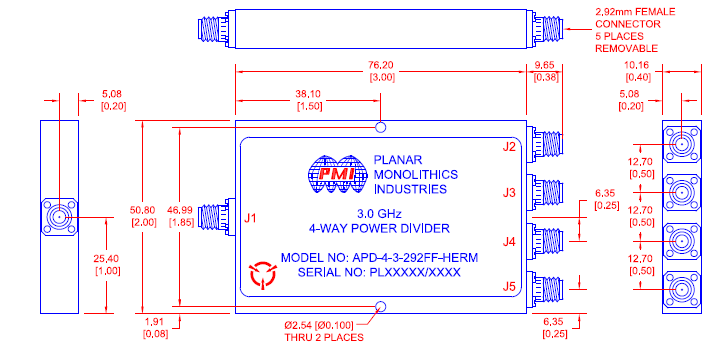

| Size: | 3.0" x 2.0" x 0.4" |
| Sealing: | Hermetic |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
