APD-4-3D13D5-60W-SFF Preliminary

32 Way Power Divider

APD-4-3D13D5-60W-SFF
Product Feature

Quantic PMI Model APD-4-3D13D5-60W-SFF is a 4 Way Power Divider operating between 3.1 to 3.5 GHz that offers 23 dB minimum isolation while maintaining a typical insertion loss of 0.45 dB, a maximum phase balance of 4°, and a maximum amplitude balance of ±0.1 dB. Housing measures 2.56" x 1,77" x 0.44" and is outfitted with SMA Female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 4 Way
Frequency Range (GHz): 3.1 to 3.5
Frequency Min (GHz): 3.1
Frequency Max (GHz): 3.5
Isolation (dB): 23 dB Min
Insertion Loss (dB): 0.45 dB Max
VSWR (In/Out): 1.3:1 / 1.2:1
Amplitude Balance: ±0.1 dB
Phase Balance: 4°
Power Handling: 60 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female

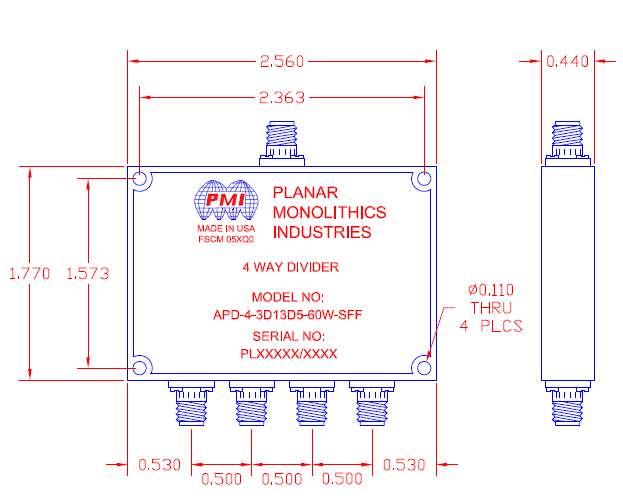

Size: 2.56" x 1, 77" x 0.44"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Operating Humidity: Up to 90% (Non-Condensing)
