APD-4-400M8G-SFF-30W Preliminary
4 Way Power Divider

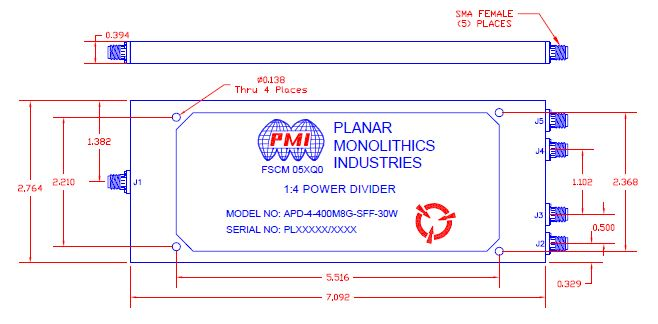

Quantic PMI Model APD-4-400M8G-SFF-30W is a four way power divider that operates over the 0.4 to 8 GHz frequency range featuring high isolation, low insertion loss, low VSWR, and has excellent phase and amplitude balance. Housing size is 7.092" x 2.764" x 0.394" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 0.4 to 8 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 8 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 3 dB Max (Above 6.02 dB Split) |
| VSWR (In/Out): | 1.8:1 Max / 1.5:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±6° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Solder: | Lead Free, ROHS Compliant |
| Connectors: | SMA Female |
| Size: | 7.092" x 2.764" x 0.394" |
| Finish: | Painted Blue |
| Weight: | 330 g |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +65 °C |
| Temperature (Non-Operating): | -65 °C to +95 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
