APD-4-4D1G6D1G-30W-SFF Active

4 Way Power Divider

APD-4-4D1G6D1G-30W-SFF
Product Feature
Additional Documents

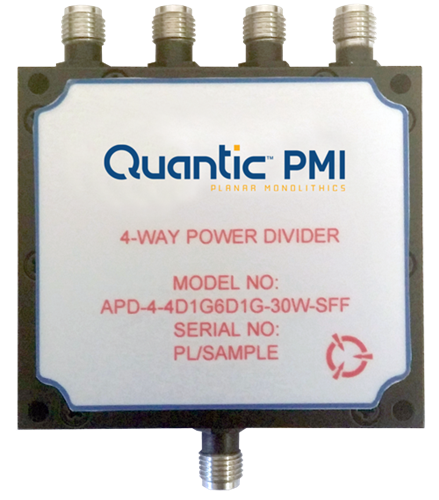

Quantic PMI Model APD-4-4D1G6D1G-30W-SFF is a 4 Way Power Divider operating between the range of 4.1 to 6.1 GHz that offers 20 dB minimum isolation while maintaining an insertion loss of 0.8 dB, a maximum phase balance of 3°, and a maximum amplitude balance of 0.3 dB. Housing measures 1.772" x 2.21" x 0.39" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 4 Way
Frequency Range (GHz): 4.1 to 6.1
Frequency Min (GHz): 4.1
Frequency Max (GHz): 6.1
Isolation (dB): 20 dB Min
Insertion Loss (dB): 0.8 dB Max
VSWR (In/Out): 1.3:1 Max
Amplitude Balance: ±0.3 dB Max
Phase Balance: ±3° Max
Power Handling: 60 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 1.772" x 2.21" x 0.39"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Operating Humidity: 5 to 95% (Non-Condensing)
Shock: 5 to 20 Hz, 0.000298 g2/Hz, 20 to 150 Hz, -6 dB/oct, 15 min, 0.1gRMS
Air Pressure: 70 to 106 kPa
