APD-4-500M18G-SFF-30W-OPT8
Preliminary
4 Way Power Divider, Lead Free, ROHS Compliant

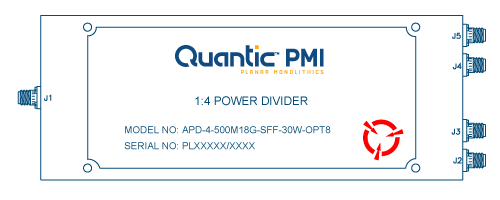

Quantic PMI Model APD-4-500M18G-SFF-30W-OPT8 is a 4 Way Power Divider featuring high isolation, low insertion loss, and has excellent phase and amplitude balance. Housing measures 7.092" x 2.764" x 0.394" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 4 Way |
|---|
| Frequency Range (GHz): | 0.5 to 8 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 8 |
|---|
| Isolation (dB): | 12 dB Min |
|---|
| Insertion Loss (dB): | 4 dB Max |
|---|
| Insertion Loss (dB) - Measured: | 4 dB Max (Above 6 dB Split) |
|---|
| VSWR (In/Out): | 1.9:1 Max / 1.7:1 Max |
|---|
| Amplitude Balance: | ±0.6 dB Max |
|---|
| Phase Balance: | ±3° Max |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Solder: | Lead Free, ROHS Compliant |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 7.092" x 2.764" x 0.394" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 330 g |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
