APD-4-5M1G-BNC Preliminary
4 Way Power Divider

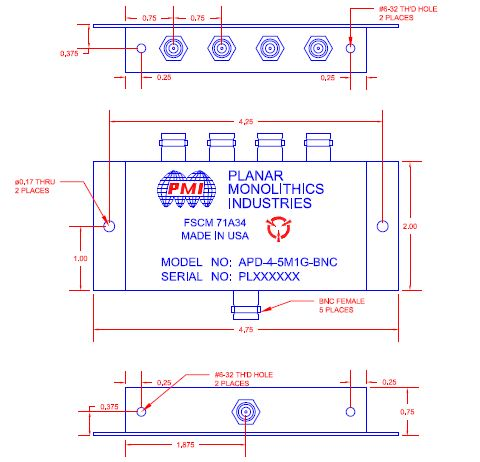

Quantic PMI Model APD-4-5M1G-BNC is a 4 Way power divider that operates over the frequency range of 0.005 to 1 GHz with a maximum insertion loss of 2.5 dB and a minimum isolation of 20 dB. Housing size is 4.75" x 2.0" x 0.75" and is outfitted with BNC female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 0.005 to 1 |
| Frequency Min (GHz): | 0.005 |
| Frequency Max (GHz): | 1 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 2.5 dB Max |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±5.0º Max |
| Power Handling: | 5 W Max (Forward) 0.5 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | BNC Female |
| Size: | 4.75" x 2.0" x 0.75" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 ºC to +50 ºC |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
