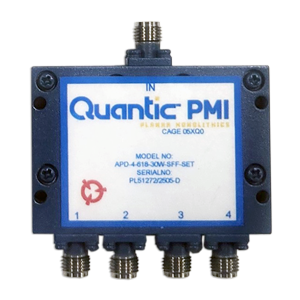

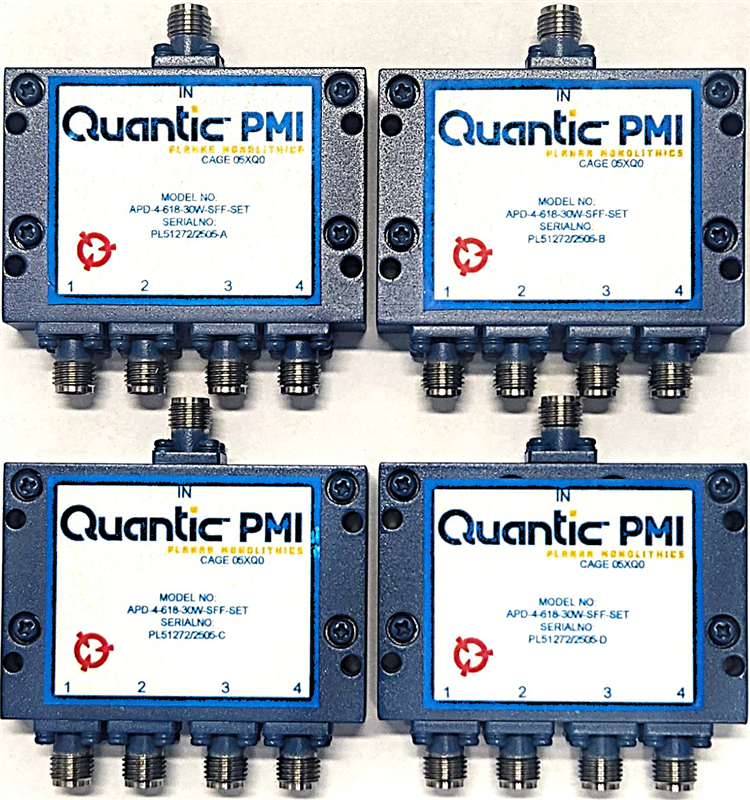

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 4 Way |
|---|
| Frequency Range (GHz): | 6 to 18 |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 18 dB Min |
|---|
| Insertion Loss (dB): | 1.1 dB Max |
|---|
| VSWR (In/Out): | 1.5:1 Max / 1.4:1 Max |
|---|
| Amplitude Balance: | ±0.3 dB Max (Arm-to-arm),
±0.35 dB Max (Unit-to-unit per set of 4) |
|---|
| Phase Balance: | ±3° Max (Arm-to-arm),
±5° Max (Unit-to-unit per set of 4) |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 ohm |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.99" x 1.40" x 0.39" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 50 g |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202 METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND A |
|---|
| Fungus: | No damage or degradation of performance when exposed to a mold growth environment for 45 days. |
|---|
| Salt Fog: | MIL-STD-810C, METHOD 509.1, PROCEDURE I |
|---|
