APD-4-800M2D5G-NFF-30W Preliminary
4 Way Power Divider

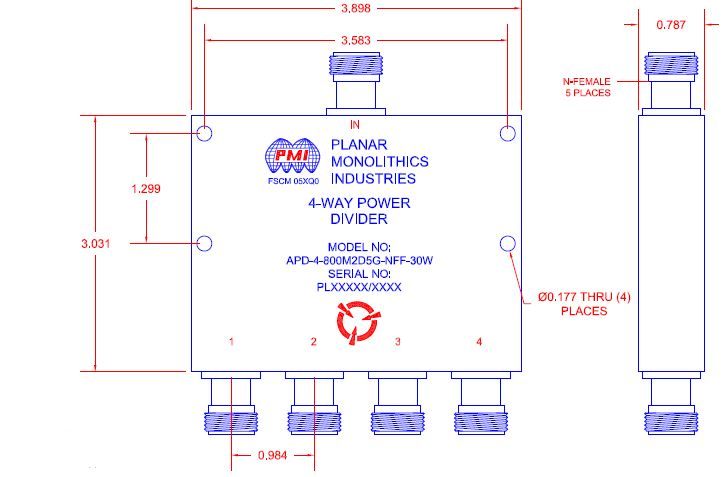

Quantic PMI Model APD-4-800M2D5G-NFF-30W is a 0.8 to 2.5 GHz four way power divider featuring high isolation, low insertion loss, and low VSWR that is designed for broadband use and high reliability. Housing measures 3.898" x 3.031" x 0.787" with Type-N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 4 Way |
| Frequency Range (GHz): | 0.8 to 2.5 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 2.5 |
| Isolation (dB): | 22 dB Min |
| Insertion Loss (dB): | 0.8 dB Max (Above 6.02 dB Split) |
| VSWR (In/Out): | 1.3:1 Max / 1.25:1 Max |
| Amplitude Balance: | ±0.3 dB Max |
| Phase Balance: | ±3° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | Type-N Female |
| Size: | 3.898" x 3.031" x 0.787" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +65 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
