APD-6-400M3G-17-SFF-75W Preliminary
6 Way Power Divider

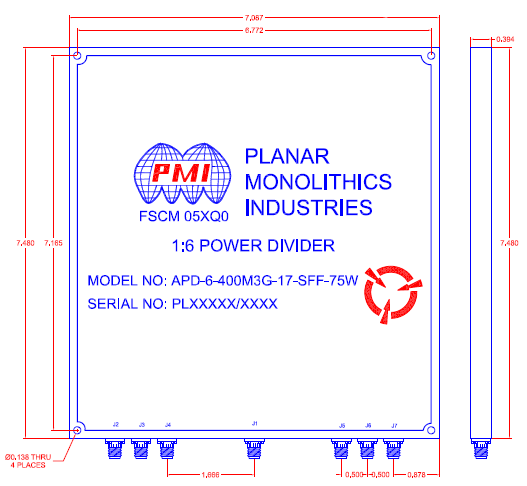

Quantic PMI Model APD-6-400M3G-17-SFF-75W is a 0.4 to 3 GHz, 6 Way Power Divider featuring high isolation, low insertion loss, low VSWR, and has excellent phase and amplitude balance. Housing size is 7.087" x 7.48" x 0.394" and is supplied with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 6 Way |
| Frequency Range (GHz): | 0.4 to 3 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 3 |
| Isolation (dB): | 17 dB Min |
| Insertion Loss (dB): | 2 dB Max |
| Insertion Loss (dB) - Measured: | 2 dB Max (Above 7.78 dB Split) |
| VSWR (In/Out): | 1.5:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±6° Max |
| Power Handling: | 75 W Max (Forward) 5 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 7.087" x 7.480" x 0.394" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
