APD-7-328M335R5M-TNC Active
7 Way Power Divider

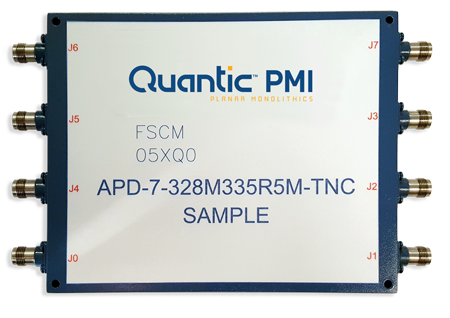

Quantic PMI Model APD-7-328M335R5M-TNC is a 7 Way power divider that operates over the frequency range 0.328 to 0.3355 GHz with an insertion loss of 1.2 dB maximum and an isolation of 20 dB minimum. Supplied in a conformal coated package measuring 7.5" x 6.0" x 0.945" and is outfitted with TNC female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 7 Way |
| Frequency Range (GHz): | 0.328 to 0.3355 |
| Frequency Min (GHz): | 0.328 |
| Frequency Max (GHz): | 0.3355 |
| Isolation (dB): | 20 dB Min |
| Isolation (dB) - Measured: | 25.12 dB |
| Insertion Loss (dB): | 1.2 dB Max |
| Insertion Loss (dB) - Measured: | 0.46 dB |
| VSWR (In/Out): | 1.15:1 Max |
| Amplitude Balance: | ±0.2 dB Max |
| Amplitude Balance (Measured): | ±0.08 dB |
| Phase Balance: | ±2º Max |
| Phase Balance (Measured): | ±0.9º |
| Impedance: | 50 Ohm |
| Forward Power: | 15 W Max |
| Reverse Power: | 1 W Max |
| Connectors: | TNC Female |
| Size: | 7.5" x 6.0" x 0.945" |
| Sealing: | Conformal Coated Per Request |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -50 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | Up to 95% (Non-Condensing) (Operating) |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. B |
