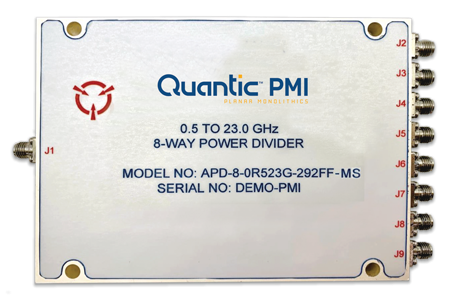

APD-8-0R523G-292FF-MS

8-Way power Divider

PMI Model: APD-8-0R523G-292FF-MS is an eight way power divider operating over the 0.5 to 23.0 GHz frequency range. This model has a maximum insertion loss of 2.5 dB from 2.0 to 8.0 GHz and 5.2 dB Maximum between 8.0 to 18.0 GHz. The compact 5.0" x 3.7" x .43" housing is outfitted with 2.92mm connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8-Way
Frequency Min: 0.5 GHz
Frequency Max: 23.0 GHz
Isolation: 0.5 to 1 GHz – 10 dB Typ
1 to 2 GHz – 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 22 GHz - 15 dB Typ
22 to 23 GHz - 10 dB Typ
Insertion Loss: 0.5 to 1 GHz – 2.0 dB Max
1 to 2 GHz – 2.2 dB Max
2 to 8 GHz - 2.5 dB Max
8 to 18 GHz - 5.2 dB Max
18 to 22 GHz - 6.5 dB Max
22 to 23 GHz - 8.0 dB Typ
Amplitude Balance: 0.5 to 1 GHz - ± 0.5 dB Max
1 to 2 GHz - ± 0.5 dB Max
2 to 8 GHz - ± 0.5 dB Max
8 to 18 GHz - ± 1.2 dB Max
18 to 22 GHz - ± 1.8 dB Max
22 to 23 GHz - ± 2 dB Max
Phase Balance: 0.5 to 1 GHz – ± 3° Max
1 to 2 GHz – ± 3° Max
2 to 8 GHz - ± 4° Max
8 to 18 GHz - ± 10° Max
18 to 22 GHz - ± 15° Max
22 to 23 GHz - ± 20° Max
Connectors: 2.92mm female removable
Finish: Painted Blue
Size: 5.00" x 3.70" x 0.43"
VSWR Input: 0.5 to 1 GHz – 2.5:1 Typ
1 to 2 GHz – 2.6:1 Max
2 to 8 GHz - 2.1:1 Max
8 to 18 GHz - 2.0:1 Typ
18 to 22 GHz - 2.1:1 Typ
22 to 23 GHz - 2.2:1 Typ
VSWR Output: 0.5 to 1 GHz – 1.5:1 Max
1 to 2 GHz – 1.5:1 Max
2 to 8 GHz - 1.7:1 Typ
8 to 18 GHz - 1.8:1 Typ
18 to 22 GHz - 2.0:1 Typ
22 to 23 GHz - 2.0:1 Typ
Average Power: 25 WATTS (INTO 1.2:1 LOAD VSWR)
Environmental Ratings:
Operating Temperature: -55 °C TO +85 °C
Non-Operating Temperature: -65 °C TO +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
