APD-8-0R5G6G-SFF Preliminary
8 Way Power Divider
Quantic PMI Model APD-8-0R5G6G-SFF is an 8 Way Power Divider that operates over the frequency range of 0.5 to 6 GHz with a maximum insertion loss of 2.5 dB (above 9.03 dB split) and a minimum isolation of 16 dB. Housing size is 9.843" x 4.449" x 0.394" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 8 Way |
| Frequency Range (GHz): | 0.5 to 6 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 6 |
| Isolation (dB): | 16 dB Min |
| Insertion Loss (dB): | 2.5 dB Max (Above 9.03 dB Split) |
| VSWR (In/Out): | 1.6:1 Max / 1.4:1 Max |
| Amplitude Balance: | ±0.5 dB Max |
| Phase Balance: | ±8° Max |
| Power Handling: | 35 W Max (Forward) 2 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |

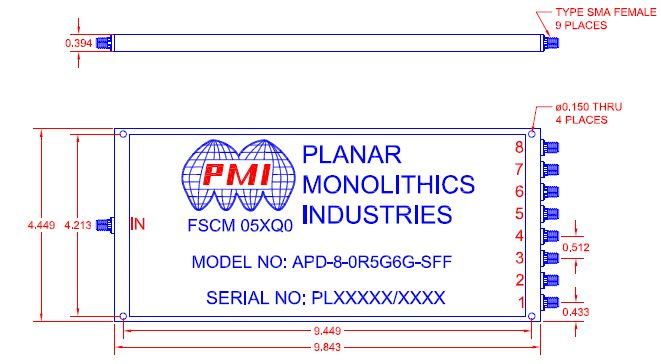

| Size: | 9.843" x 4.449" x 0.394" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | Up to 95% (Non-Condensing) |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
