APD-8-1112

Model APD-8-1112 is an eight way stripline power divider featuring high isolation and low insertion loss. Designed for 11 to 12.4GHz operation and high reliability.

Product Specifications

General Parameters:
Status: Preliminary
Type: 8-Way
Frequency Min: 11 GHz
Frequency Max: 12.4 GHz
Isolation: 15.0 dB Min
Insertion Loss: 2.0 dB Max
Frequency Range: 11.0 GHz TO 12.4 GHz
VSWR (In/Out): 1.8:1
Amplitude Balance: +/-0.6 dB
Phase Balance: ±13º
Average Power Into Load VSWR: 1.2:1 25 WATTS, 2.0:1 7.5 WATTS, 00:1 0.75 WATTS

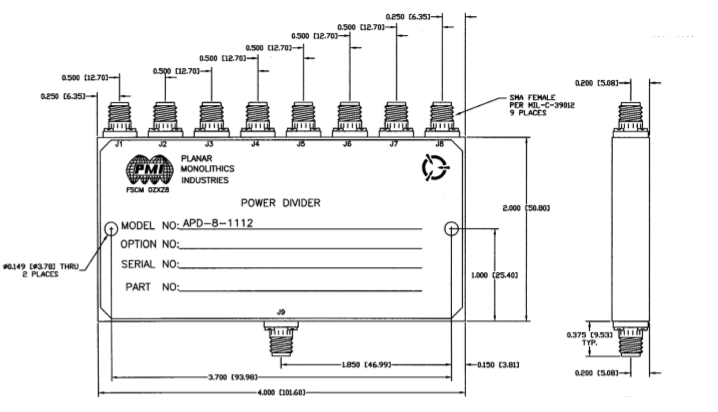

Size: 4.00" (L) x 2.00" (W) x 0.40" (H)
Environmental Ratings:
Operating Temperature: -54ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
