APD-8-1G18G-292FF

8-Way Power Divider

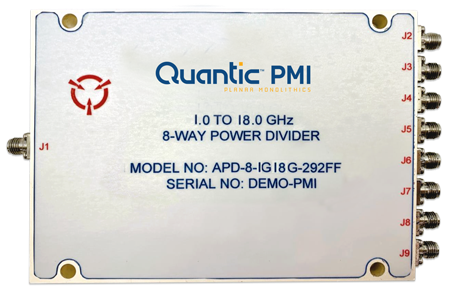

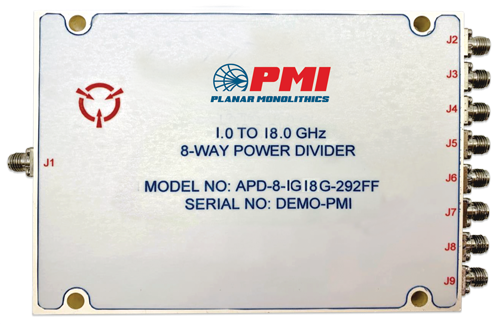

PMI Model: APD-8-1G18G-292FF is an eight way power divider operating over the 1.0 to 18.0 GHz frequency range. This model has a maximum insertion loss of 2.0 dB from 1.0 to 8.0 GHz and 3.2 dB Max between 8.0 to 18.0 GHz. The compact 5.0" x 3.7" x 0.43" housing is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8-Way
Frequency Min: 1.0 GHz
Frequency Max: 18.0 GHz
Isolation: 1 to 2 GHz - 10 dB Typ
2 to 8 GHz -20 dB Typ
8 to 18 GHz - 20 dB Typ
Insertion Loss: 2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
Amplitude Balance: 1 to 2 GHz -± 0.5 dB Max
2 to 8 GHz - ± 0.3 dB Max
8 to 18 GHz - ± 0.5 dB Max
Phase Balance: 1 to 2 GHz - 3° Max
2 to 8 GHz - 4 ° Max
8 to 18 GHz -10° Typ
Connectors: 2.92mm (F)
Finish: Painted Blue
Size: 5.00" X 3. 70" X 0.43"
VSWR Input: 1 to 2 GHz - 2.6:1 Max
2 to 8 GHz -2.1 :1 Max
8 to 18 GHz - 2.0:1 Max
VSWR Output: 1 to 2 GHz - 1.5:1 Max
2 to 8 GHz - 1.7:1 Max
8 to 18 GHz-1.8:1 Max
Average Power: 25 Watts
Environmental Ratings:
Operating Temperature: -55 °C TO +85 °C
Non-Operating Temperature: -65 °C TO +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
