APD-8-1G4G-SMA-30W Preliminary
8 Way Power Divider

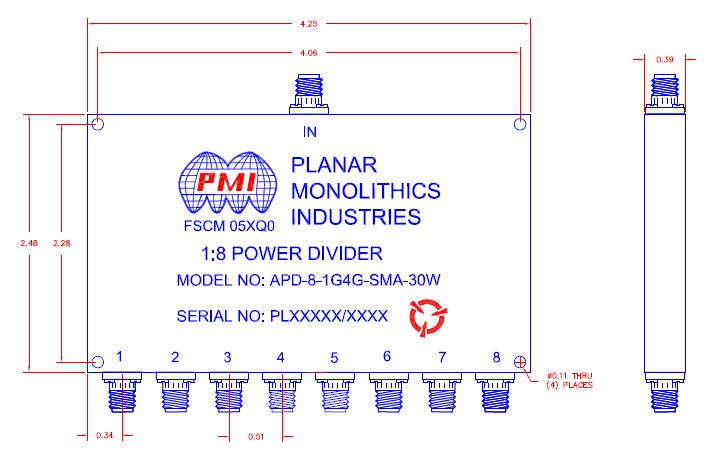

Quantic PMI Model APD-8-1G4G-SMA-30W is an 8 Way power divider operating over the 1 to 4 GHz frequency range that demonstrates a low insertion loss of 1.4 dB maximum, with an isolation of 20 dB minimum Housing measures 4.25" x 4.06" x 0.39" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 8 Way |
| Frequency Range (GHz): | 1 to 4 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 4 |
| Isolation (dB): | 20 dB Min |
| Insertion Loss (dB): | 1.4 dB Max (Above 9.03 dB Split) |
| VSWR (In/Out): | 1.4:1 Min / 1.3:1 Min |
| Amplitude Balance: | ±0.4 dB Max |
| Phase Balance: | ±4° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 4.25" x 4.06" x 0.39" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
