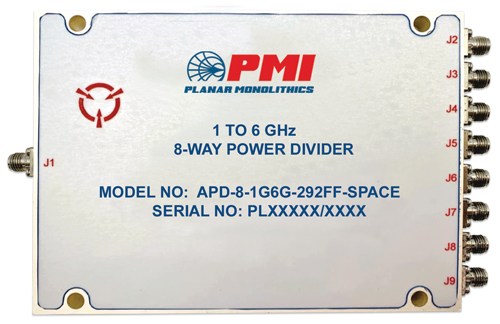

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 8 Way |
|---|
| Frequency Range (GHz): | 1 to 6 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Isolation (dB): | 10 dB Typ (1 to 2 GHz),
20 dB Typ (2 to 6 GHz) |
|---|
| Insertion Loss (dB): | 2.0 dB Max |
|---|
| Amplitude Balance: | ±0.5 dB Max (1 to 2 GHz),
±0.3 dB Max (2 to 6 GHz) |
|---|
| Phase Balance: | 3˚ Max (1 to 2 GHz),
4˚ Max (2 to 6 GHz) |
|---|
| Average Power Into Load VSWR: | 25 W (Into 1.2:1 load VSWR) |
|---|
| VSWR Input: | 2.6:1 Max (1 to 2 GHz),
2.1:1 Max (2 to 6 GHz) |
|---|
| VSWR Output: | 1.5:1 Max (1 to 2 GHz),
1.7:1 Max (2 to 6 GHz) |
|---|
| Connectors: | 2.92mm Female
Mechanically Captivated |
|---|

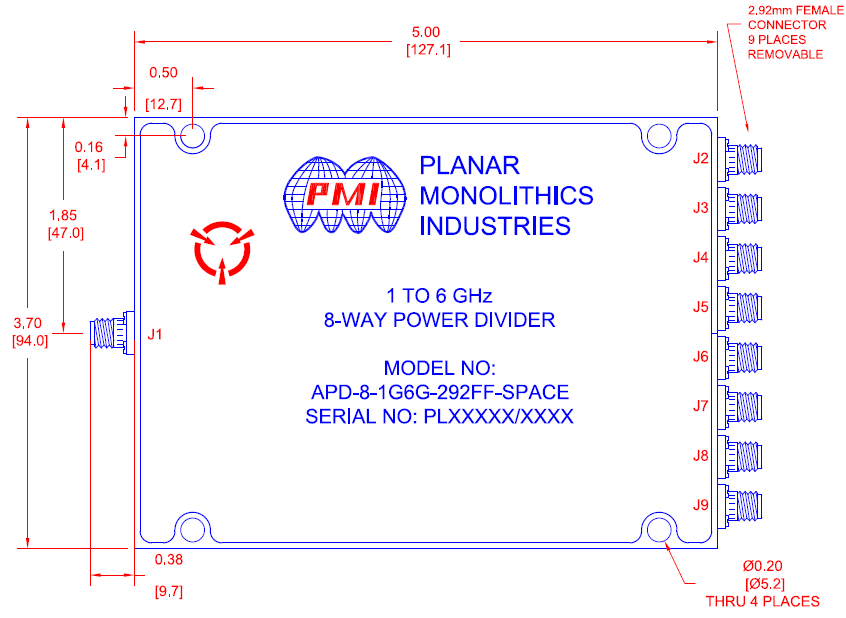

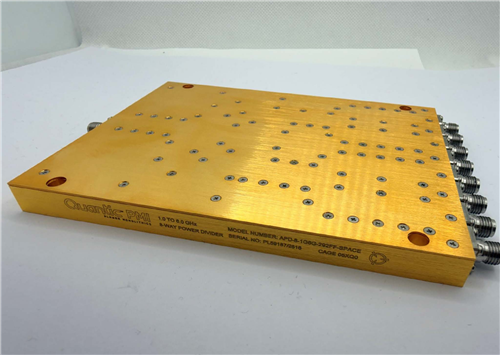

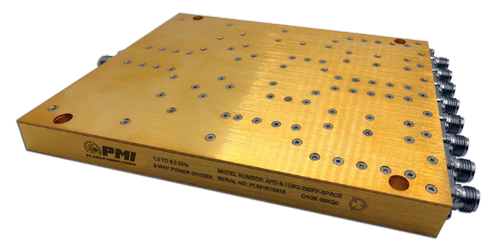

| Size: | 5.0" x 3.7" x 0.43" |
|---|
| Finish: | Gold Plated |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ˚C to +85 ˚C |
|---|
| Temperature (Non-Operating): | -65 ˚C to +125 ˚C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
