APD-8-20M6G-28V

PMI Model No. APD-8-20M6G-28V is an 8-way amplified power divider module for use over the frequency range of 20 MHz to 6.0 GHz with 6 dB of gain, and an output compression of 1dB at 10dBm over the frequency range of 20 to 3000 MHz. This model is designed to have a relatively low noise figure over a broad frequency range.

Product Specifications

General Parameters:
Status: Preliminary
Type: 8-Way
Frequency Min: 0.02 GHz
Frequency Max: 6 GHz
Frequency Range: 0.02 to 6.0 GHz
Gain: 6dB, ±3dB max
Noise Figure: 9 dB (70 to 3000 MHz) max, 10 dB (20 to 6000 MHz) typ
VSWR (In/Out): 2.:1 max
Output Power P1dB: 10 dBm (20 to 300 MHz) min, 9 dBm
Input Power: 33 dBm max (Survival)
Power Supply: +28V @ +35mA max
Finish: Painted Blue
Weight: 140 Grams max

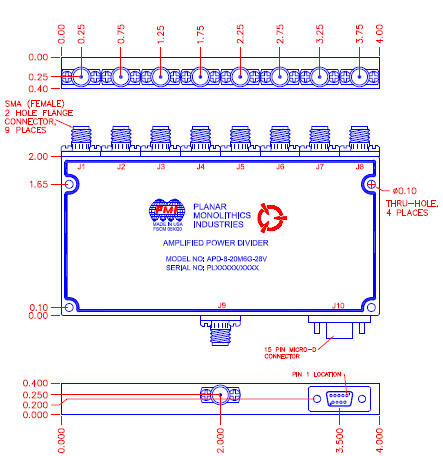

Size: 4.00 x 2.00 x 0.40
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -54 ºC to +100 ºC
Humidity: MIL-STD-202G, Method 103B Cond. B
Shock: MIL-STD-202G, Method 213B Cond. B
Vibration: MIL-STD-202G, Method 204D Cond. B
Altitude: MIL-STD-202G, Method 105C Cond. B
Temperature Cycle: MIL-STD-202G, Method 107D Cond. A
