APD-8-2D8G4D3G-10W-SFF Preliminary

8 Way Power Divider

APD-8-2D8G4D3G-10W-SFF
Product Feature

Quantic PMI Model APD-8-2D8G4D3G-10W-SFF is an 8 Way Power Divider operating between 2.8 to 4.3 GHz that provides a typical insertion loss of 1 dB and a minimum insertion loss of 22 dB. Input and output VSWR is <1.3:1 into 50 Ω impedance. Housing measures 4.25" x 2.28" x 0.39" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Type: 8 Way
Frequency Range (GHz): 2.8 to 4.3
Frequency Min (GHz): 2.8
Frequency Max (GHz): 4.3
Isolation (dB): 22 dB Min
Insertion Loss (dB): 1 dB Typ, 1.5 dB Max
VSWR (In/Out): 1.3:1 Max
Amplitude Balance: 0.5 dB Max
Phase Balance: 10º Max
Power Handling: 10 W Max (Forward),
0.5 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Connector Body: Passivated Stainless Steel

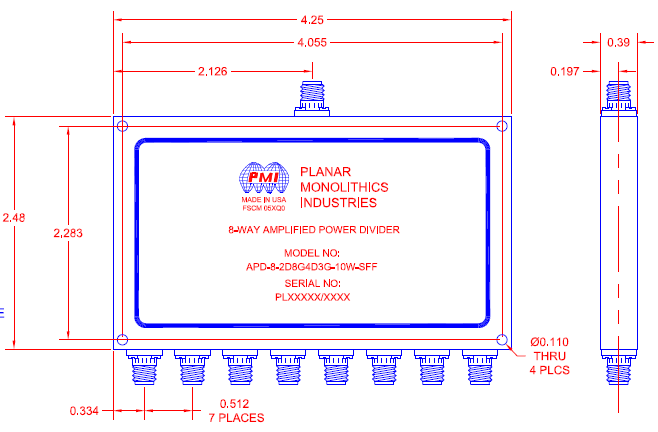

Size: 4.25" x 2.48" x 0.39"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Operating Humidity: Up to 90% (Non-Condensing)
