APD-8-2D9G3D5G-SMA-40W Active
8 Way Power Divider
Additional Documents

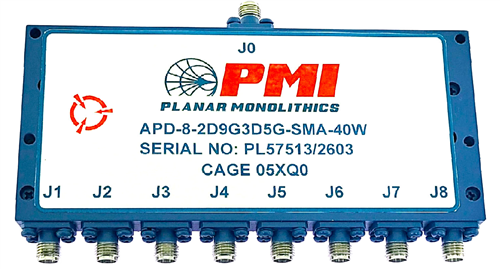

PMI Model APD-8-2D9G3D5G-SMA-40W is an 8-way power divider operating over the 2.9 to 3.5 GHz frequency range that demonstrates less than 0.6 dB insertion loss and greater than 22 dB isolation. This product's housing size is 4.66" x 2.15" x 0.44" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 8 Way |
| Frequency Range (GHz): | 2.9 to 3.5 |
| Frequency Min (GHz): | 2.9 |
| Frequency Max (GHz): | 3.5 |
| Isolation (dB): | 22 dB Min |
| Insertion Loss (dB): | 0.6 dB Max (Above 9.03 dB Split) |
| VSWR (In/Out): | 1.35:1 Max / 1.22:1 Max |
| Amplitude Balance: | ±0.2 dB Max |
| Phase Balance: | ±2° Max |
| Power Handling: | 40 W Max (Forward) 1 W Max (Reverse) |
| Connectors: | SMA Female |
| Size: | 4.66" x 2.15" x 0.44" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -55 °C to +125 °C |
| Humidity: | Up to 95%, Non-Condensing |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
