| General Parameters: |
|---|
| Status: | Active |
|---|

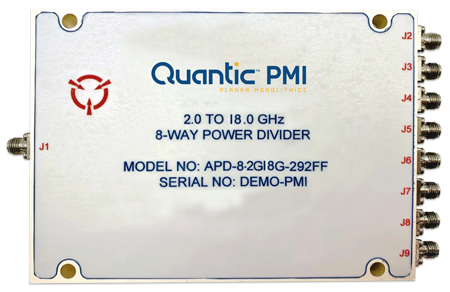

| Type: | 8 Way |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 20 dB Typ |
|---|
| Insertion Loss (dB): | 2 dB (2 to 8 GHz),
3.2 dB (8 to 18 GHz) |
|---|
| Amplitude Balance: | ±0.3 dB Max (2 to 8 GHz),
±0.5 dB Max (8 to 18 GHz) |
|---|
| Phase Balance: | 4° Max (2 to 8 GHz),
10° Typ (8 to 18 GHz) |
|---|
| VSWR Input: | 2.1:1 Max (2 to 8 GHz),
2.0:1 Max (8 to 18 GHz) |
|---|
| VSWR Output: | 1.7:1 Max (2 to 8 GHz),
1.8:1 Max (8 to 18 GHz) |
|---|
| Average Power: | 25 W |
|---|
| Connectors: | 2.92mm Female |
|---|
| Size: | 5.0" x 3.7" x 0.43" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
