| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Type: | 8 Way |
|---|
| Frequency Range (GHz): | 2 to 4 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Isolation (dB): | 22 dB Min |
|---|
| Insertion Loss (dB): | 0.6 dB Max (Above 9.03 dB Split) |
|---|
| VSWR (In/Out): | 1.35:1 Max / 1.22:1 Max |
|---|
| Amplitude Balance: | ±0.2 dB Max |
|---|
| Phase Balance: | ±2° Max |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors: | SMA Female |
|---|

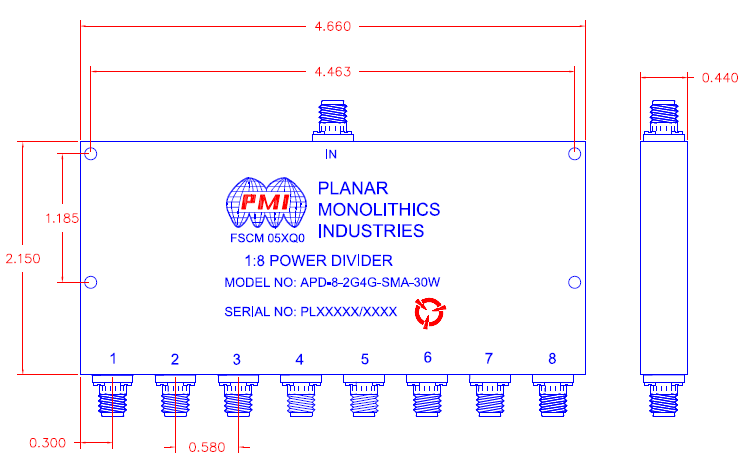

| Size: | 4.66" x 2.15" x 0.44" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -55 °C to +125 °C |
|---|
| Humidity: | UP to 90%, NON-CONDENSING |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-810F TEST METHOD, METHOD 514,
Process 1 (3 grams, 3 axis) |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
