APD-8-34

Model APD-8-34 is an eight way stripline power divider featuring high isolation and low insertion loss. Designed for 3.6 to 4.2GHz operation and high reliability.

Product Specifications

General Parameters:
Status: Preliminary
Type: 8-Way
Frequency Min: 3.6 GHz
Frequency Max: 4.2 GHz
Isolation: 17.0 dB Min
Insertion Loss: 0.8 dB Max
Frequency Range: 3.6 GHz TO 4.2 GHz
VSWR (In/Out): 1.5:1
Amplitude Balance: +/-0.5 dB
Phase Balance: ±9º
Average Power Into Load VSWR: 1.2:1 25 WATTS, 2.0:1 7.5 WATTS, 00:1 0.75 WATTS

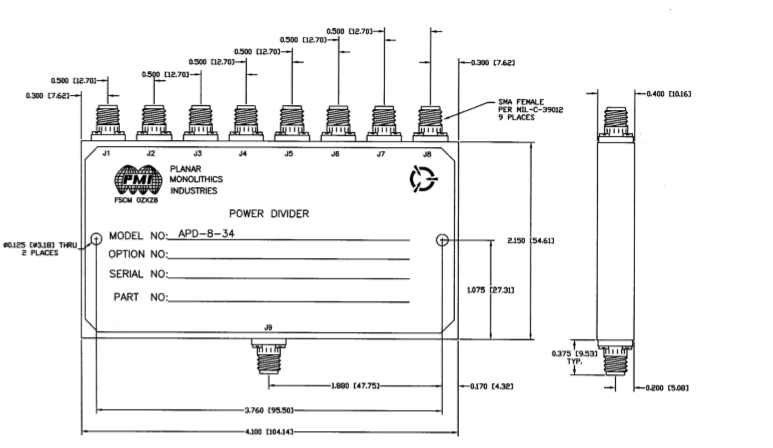

Size: 4.10" (L) x 2.15" (W) x 0.40" (H)
Environmental Ratings:
Operating Temperature: -54ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
