APD-8-4G8G-SMA-30W Active

8 Way Power Divider

APD-8-4G8G-SMA-30W
Product Feature

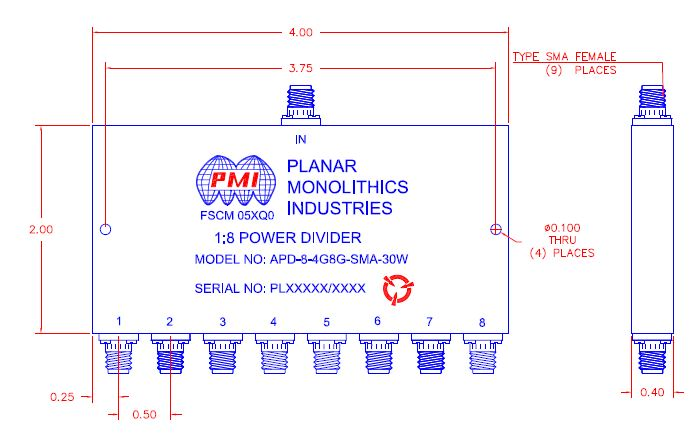

Quantic PMI Model APD-8-4G8G-SMA-30W is an 8 Way power divider operating over 4 to 8 GHz frequency range that demonstrates a low insertion loss of 1 dB maximum with an isolation of 17 dB minimum.  Housing size is 4.0" x 2.0" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8 Way
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Isolation (dB): 17 dB Min
Insertion Loss (dB): 1 dB Max (Above 9.03 dB Split)
Amplitude Balance: ±0.4 dB Max
Phase Balance: ±5° Max
Power Handling: 30 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
VSWR Input: 1.4:1 Max
VSWR Output: 1.4:1 Max
Connectors: SMA Female
Size: 4.0" x 2.0" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Non-Operating): -65 °C to +125 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107
