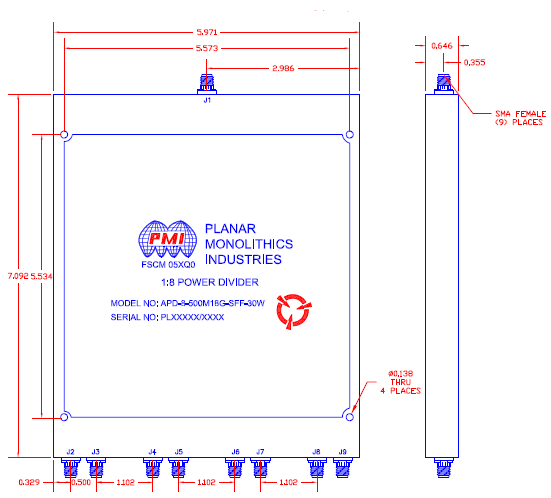

APD-8-500M18G-SFF-30W

PMI Model No. APD-8-500M18G-SFF-30W is a 8-Way Power Divider featuring high isolation, low insertion loss, and has excellent phase and amplitude balance.

Product Specifications

General Parameters:
Status: Preliminary
Type: 8-Way
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
Isolation: 12 dB Min
Isolation (Measured): 12 dB min. @ 0.5 to 0.6 GHz, 14 dB min. @ 0.6 to 18.0 GHz
Insertion Loss: 8.0 dB Max
Insertion Loss (Measured): 8.0 dB max., Above 9.03 dB Split)
Frequency Range: 0.5 to 18.0 GHz
VSWR (In/Out): Input: 2.0:1 max., Output: 1.8:1 max.
Amplitude Balance: ±1.0 dB max.
Phase Balance: ±9° max
Power Handling: Forward: 30 W max., Reverse: 1 W max.
Impedance: 50 Ohms
Connectors: SMA (F)(x9)
Finish: Painted Blue
Solder: Lead Free, RoHS Compliant
Weight: 1160 g
Environmental Ratings:
Operating Temperature: -55ºC to +85ºC
Non-Operating Temperature: -65ºC to +125ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
