APD-8-5G18G-SFF-30W Preliminary
8 Way Power Divider
Quantic PMI Model APD-8-5G18G-SFF-30W is an 8 Way power divider operating over the 5 to 18 GHz frequency range that has an isolation of 15 dB minimum and an insertion loss of 2 dB Max (Above 9.03 dB Split). Housing size is 4.0" x 2.0" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 8 Way |
| Frequency Range (GHz): | 5 to 18 |
| Frequency Min (GHz): | 5 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 15 dB Min |
| Insertion Loss (dB): | 2 dB Max (Above 9.03 dB Split) |
| VSWR (In/Out): | 1.6:1 / 1.5:1 Max |
| Amplitude Balance: | ±0.4 dB Max |
| Phase Balance: | ±6° Max |
| Power Handling: | 30 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |

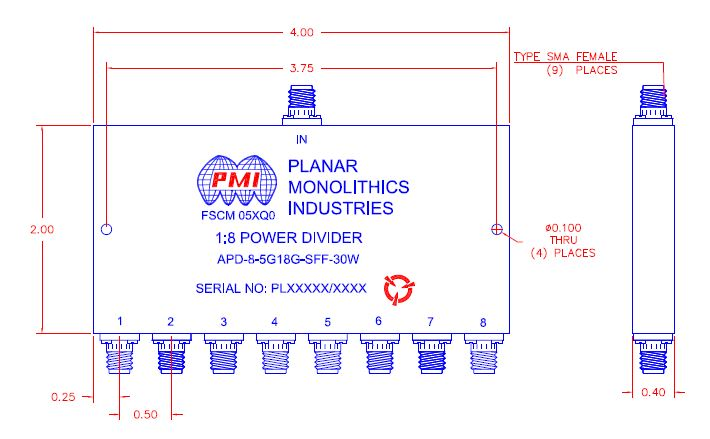

| Size: | 4.0" x 2.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
