APD-8-6G18G-SFF-OPT13D85G14D45G Active

8 Way Power Divider

APD-8-6G18G-SFF-OPT13D85G14D45G
Product Feature
Additional Documents

Quantic PMI Model APD-8-6G18G-SFF-OPT13D85G14D45G is an 8 Way, In-Phase Power Divider operating over the 13.85 GHz to 14.45 GHz frequency range. This power divider has an insertion loss of 2 dB maximum with a minimum isolation of 18 dB. This model provides input and output VSWR of 1.60:1 maximum into 50 Ω impedance. Housing measures 3.75" x 1.77" x 0.39" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8 Way
Frequency Range (GHz): 13.85 To 14.45
Frequency Min (GHz): 13.85
Frequency Max (GHz): 14.45
Isolation (dB): 18 dB Min
Insertion Loss (dB): 2 dB Max
VSWR (In/Out): 1.6:1 Max
Amplitude Balance: ±0.8 dB Max
Phase Balance: ±8º
Power Handling: 20 W Max (Forward), 0.5 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female

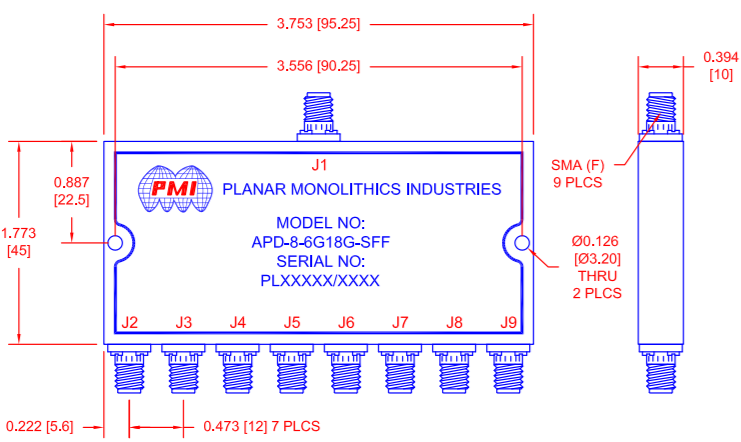

Size: 3.75" x 1.77" x 0.39"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Operating Humidity: Up to 90% (Non-Condensing)
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
