APD-8-8G12D4G-SFF Preliminary
8 Way Power Divider

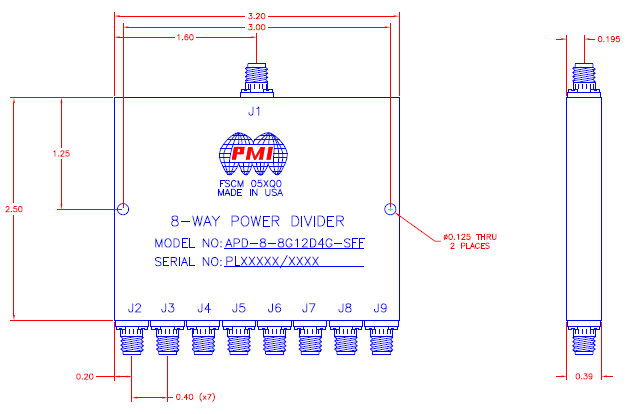

Quantic PMI Model APD-8-8G12D4G-SFF is an 8 to 12.4 GHz, 8 Way, In-Phase Power Divider having an insertion loss of 1.3 dB maximum with a minimum isolation of 17 dB. The size is 3.2" x 2.5" x 0.39"
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 8 Way |
| Frequency Range (GHz): | 8 to 12.4 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12.4 |
| Isolation (dB): | 17dB Max |
| Insertion Loss (dB): | 1.3 dB Max |
| VSWR (In/Out): | 1.6:1 Max |
| Amplitude Balance: | 0.7dB Max |
| Phase Balance: | 9.0º Max |
| Power Handling: | 10 W Max (Forward) 1 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Size: | 3.2" x 2.5" x 0.39" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
