BP-5D17G-5D25G-SFF
Bandpass Filter

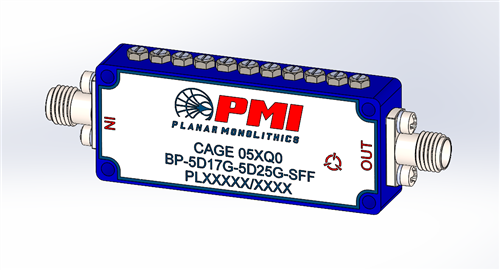

PMI Model BP-5D17G-5D25G-SFF is a Bandpass Filter designed with a center frequency of 5.21 GHz, a passband of 5.17 to 5.25 GHz, a maximum insertion loss of 1.6 dB, and a maximum VSWR of 1.31:1. Housing size is 1.93" x 0.79" x 0.39" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preiminary |
| Center Frequency (GHz): | 5.21 |
| Passband Frequency (GHz): | 5.17 to 5.25 |
| Insertion Loss (dB): | 1.6 dB Max |
| Input Power (W): | 5 W CW Max |
| VSWR: | 1.3:1 Max |
| Connectors: | SMA Female |
| Size: | 1.93" x 0.79" x 0.39" |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +70 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
