BP750-50-3B-SS Preliminary
Bandpass Filter

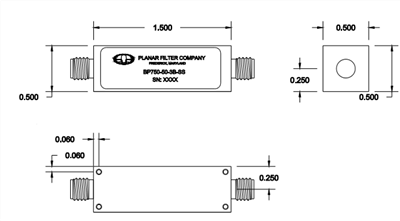

Quantic PMI Model BP750-50-3B-SS is a bandpass filter centered at 0.75 GHz with a nominal bandwidth of 0.05 GHz. Package size is 1.5" x 0.5" x 0.5" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 0.75 |
| Bandwidth (GHz): | 0.05 |
| Insertion Loss (dB): | 1.5 dB |
| Insertion Loss (Pass Band): | 1.5 dB |
| Rejection: | -60 dBc @ DC to 0.6 GHz -60 dBc @ 0.9 to 5 GHz |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 1.5" x 0.5" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -40 °C to +100 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
