BP8G-6G-CD-SFF Active
Combline Bandpass Filter

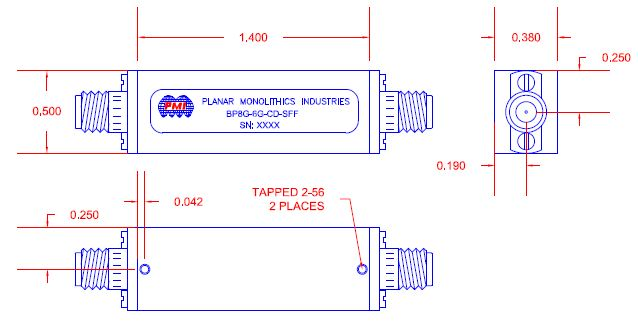

Quantic PMI Model BP8G-6G-CD-SFF is a combline bandpass filter with a center frequency of 10.75 GHz and a bandwidth of 6.5 GHz. Precision machined housing and silver plated to provide the highest possible Q. Package size is 1.36" x 0.40" x 0.50" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 10.75 |
| Bandwidth (GHz): | 6.5 |
| 3 dB Bandwidth: | 6.5 |
| Insertion Loss (dB): | 2 dB |
| Insertion Loss (Pass Band): | 2 dB |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 1.36" x 0.40" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55°C to +85°C (Operating) -65°C to +125°C (Non-Operating) |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-202F, Method 508.2 |
