BPF-11D25G-13D5G-SFF Active
Bandpass Filter
Additional Documents
Quantic PMI Model BPF-11D25G-13D5G-SFF is a Bandpass Filter that operates over the frequency range of 4.5 to 18 GHz with a typical insertion loss of 2.0 dB and a typical VSWR of 2.0:1. Package size is 31.5" x 7.87" x 3.94" with SMA female connectors.

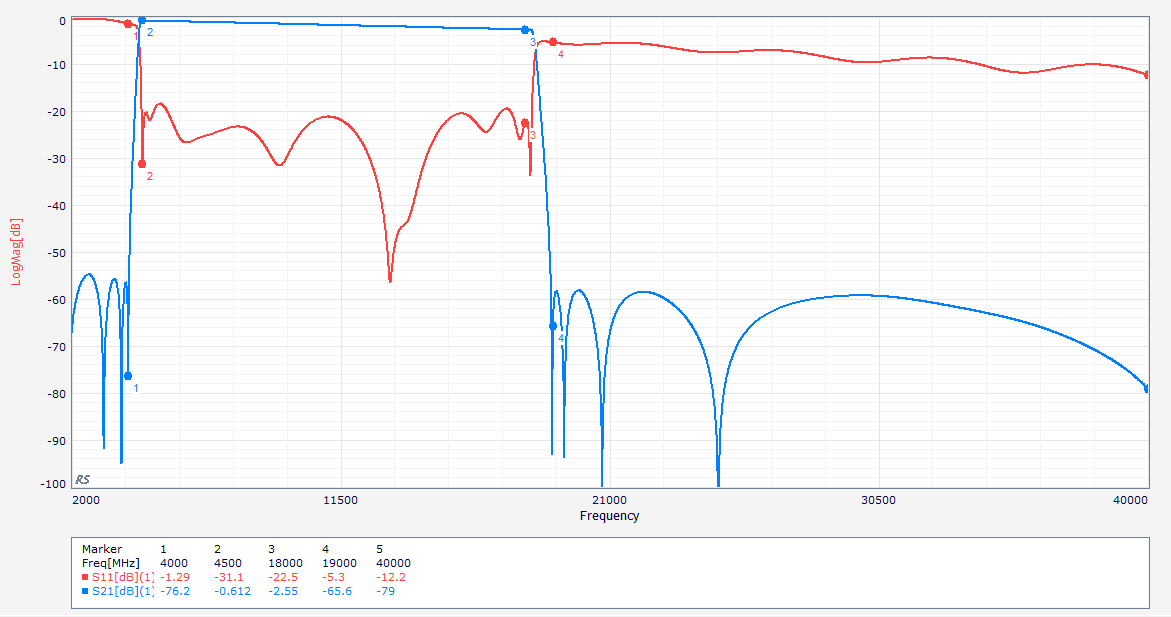

Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 11.25 |
| Frequency Range (GHz): | 4.5 to 18 |
| Bandwidth (GHz): | 13.5 |
| Passband Frequency (GHz): | 4.5 to 18 |
| Insertion Loss (dB): | 2 dB |
| VSWR: | 2.0:1 Max |
| Power: | 30 dBm CW |
| Connectors: | SMA Female |
| Size: | 800 mm x 200 mm 100 mm 31.5" x 7.87" x 3.94" (the final size may be smaller than estimated) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
