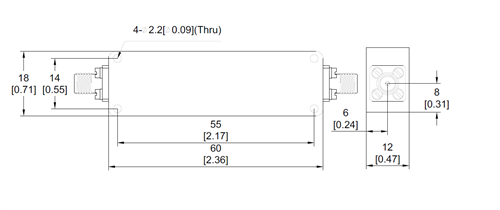

BPF-1285M1505M-SFF Preliminary
Bandpass Filter
Quantic PMI Model BPF-1285M1505M-SFF is a bandpass filter with a 1.285 to 1.505 GHz pass band that withstands 30 dBm maximum input power and exhibits 2 dB maximum insertion loss.
Product Specifications

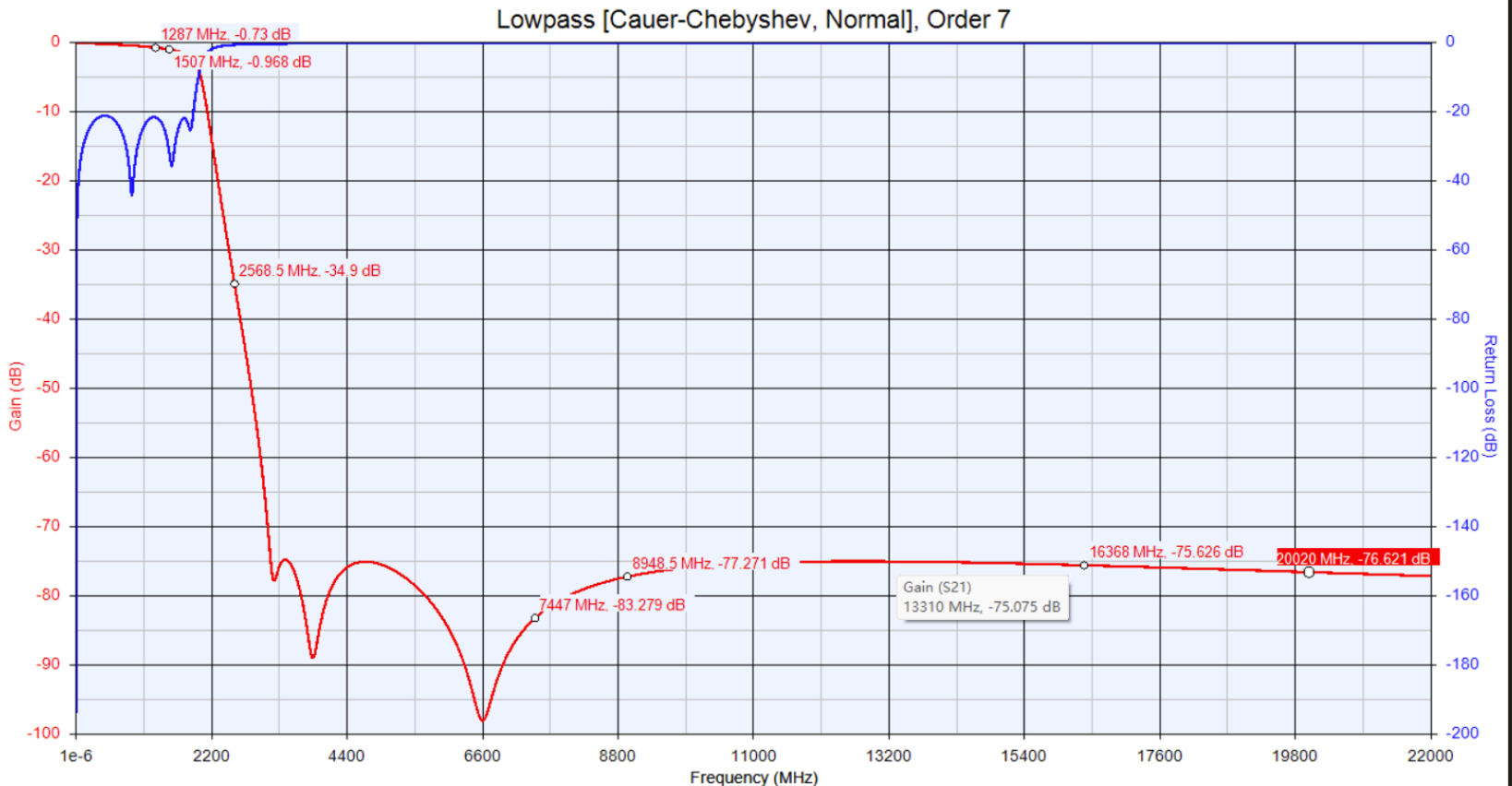

| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 1.395 |
| Bandwidth (GHz): | 1.285 to 1.505 |
| Insertion Loss (dB): | 2 dB Max |
| Input Power (dBm): | 30 dBm Max |
| Rejection: | 25 dB Min @ 2.57 to 7.145 GHz 40 dB Min @ 7.445 to 8.43 GHz 70 dB Min @ 8.95 to 9.715 GHz 40 dB Min @ 10.235 to 11.22 GHz 60 dB Min @ 16.395 to 20 GHz |
| VSWR: | 1.8:1 Max |
| Connectors: | SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +85 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
