BPF-14D6G18G-3400-SFF Active

Bandpass Filter

Product Feature
Additional Documents

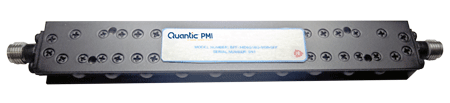

Quantic PMI Model BPF-14D6G18G-3400-SFF is a Bandpass Filter with a 3 dB bandwidth of 3.4 GHz minimum covering 14.6 to 18 GHz.  The filter is built in a connectorized package measuring 3.94" x 0.67" x 0.32" with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 16.3 GHz
Frequency Range (-3 dB Bandwidth): 14.6 to 18 GHz
Insertion Loss: 2 dB Max
Bandwidth: 3.4 MHz Min
VSWR: 2.0:1 Max
Rejection: -60 dBc @ 0.1 - 14.2 GHz,
-60 dBc @ 18.4 GHz
Connectors: SMA (F)
Size: 3.94" x 0.63" x 0.32"
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
