BPF-1G1D85G-850M-SM Active
Bandpass Filter

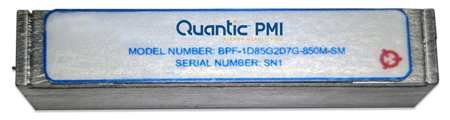

Quantic PMI Model BPF-1D85G2D7G-850M-SM is a bandpass filter enter frequency of 1.425 GHz with a 2.2 dB bandwidth covering 1 to 1.85 GHz. The filter is built in a surface mount package measuring 1.75" x 0.35" x 0.32" ideal for use in integrated modules.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.425 |
| Bandwidth (GHz): | 1 to 1.85 Max |
| Insertion Loss (dB): | 2.2 dB Max |
| Insertion Loss (Pass Band): | 2.2 dB Max |
| Rejection: | -60 dBc @ 0.1 to 0.89 GHz -60 dBc @ 1.98 to 6.0 GHz |
| VSWR in the Pass Band: | 1.5:1 Typ, 2.0:1 Max |
| Connectors: | Drop-In Filter, 0.015" Diameter RF Pin |
| Size: | 1.75" x 0.35" x 0.32" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
