BPF-2697D5M2902D5M-SFF Active
Bandpass Filter

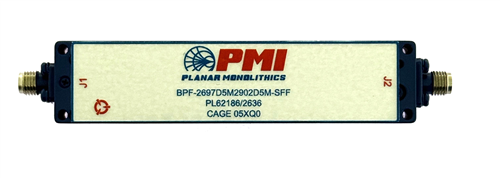

PMI Model BPF-2697D5M2902D5M-SFF is a bandpass filter with a 2.6975 to 2.9025 GHz pass band that features 3 dB maximum insertion loss, 0.5 dB maximum pass band ripple, and a input power handling of 5 W CW. Housing size is 3.46" x 0.79" x 0.47" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 2.8 |
| Bandwidth (GHz): | 2.6975 to 2.9025 |
| Insertion Loss (dB): | 3 dB Max |
| Input Power (W): | 5 CW Max |
| Passband Ripple: | 0.5 dB Max |
| Rejection: | 45 dB Min @ 437.5 to 2465 MHz 45 dB Min @ 3240 to 3340 MHz 70 dB Min @ 3677.5 to 17242.5 MHz |
| VSWR: | 1.6:1 Max |
| Connectors: | SMA Female |

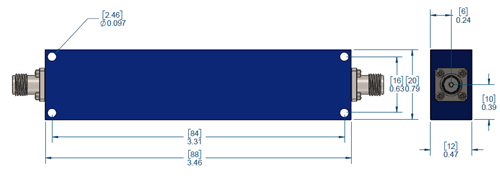

| Size: | 3.46" x 0.79" x 0.47" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +70 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
