BPF-2G18G-SFF-HERM Preliminary
Bandpass Filter
PMI Model BPF-2G18G-SFF-HERM is a hermetically sealed 2 to 18 GHz bandpass filter that features 37 dBm power handling, 1.7:1 typical VSWR, and 2 dB typical insertion loss. Package size is 2.84" x 0.95 x 047" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 10 |
| Bandwidth (GHz): | 2 to 18 |
| Passband Flatness (dB): | 1.3 Typ 1.7 Max |
| Insertion Loss (dB): | 2 dB Typ 2.5 dB Max |
| Input Power (dBm): | 37 CW Max |
| Rejection: | 60 dB Min @ DC to 1.5 GHz 40 dB Min @ 18.75 GHz 50 dB Min @ 19 to 20 GHz 60 dB Min @ 20 to 40 GHz |
| VSWR: | 1.7:1 Typ 2.0:1 Max |
| Connectors: | SMA Female |

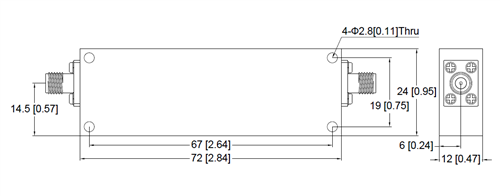

| Size: | 2.84" x 0.95 x 047" |
| Finish: | Painted Blue Hermetic Seal |
| Environmental Ratings: | |
| Temperature (Operating): | -54 ˚C to +85 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | 100% RH per MIL-HDBK-5400 4.6.2.4 |
| Shock: | MIL-STD-810F Annex C Fig. 514.8C-5 |
| Vibration: | MIL-STD-810F Annex C Fig. 514.8C-5 |
| Altitude: | 43, 000 ft. Max |
