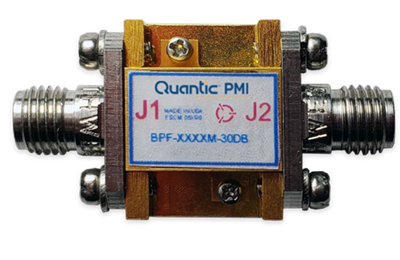

BPF-3343M-30DB Active
Bandpass Filter
Quantic PMI Model BPF-3343M-30DB is a Bandpass Filter that offers great rejection with a center frequency of 3.343 GHz; bandwidth of 0.15 GHz; a passband insertion loss of 8 dB maximum and a VSWR of 2.0:1. Small package size is 0.53" x 0.70" x 0.29" with removable SMA female connectors in and out. Can be used as connectorized or surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 3.343 |
| Bandwidth (GHz): | 0.15 |
| 3 dB Bandwidth: | 0.15 Typ |
| Insertion Loss (dB): | 8 dB Max (passband) |
| Rejection: | -30 dBc Min @ <3.043 GHz and >3.643 GHz |
| VSWR in the Pass Band: | 2.0:1 Max (Over 90% of the Passband) |
| Connectors: | SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
