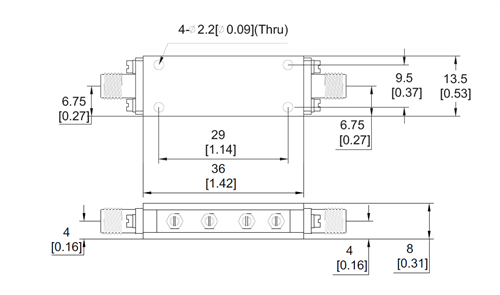

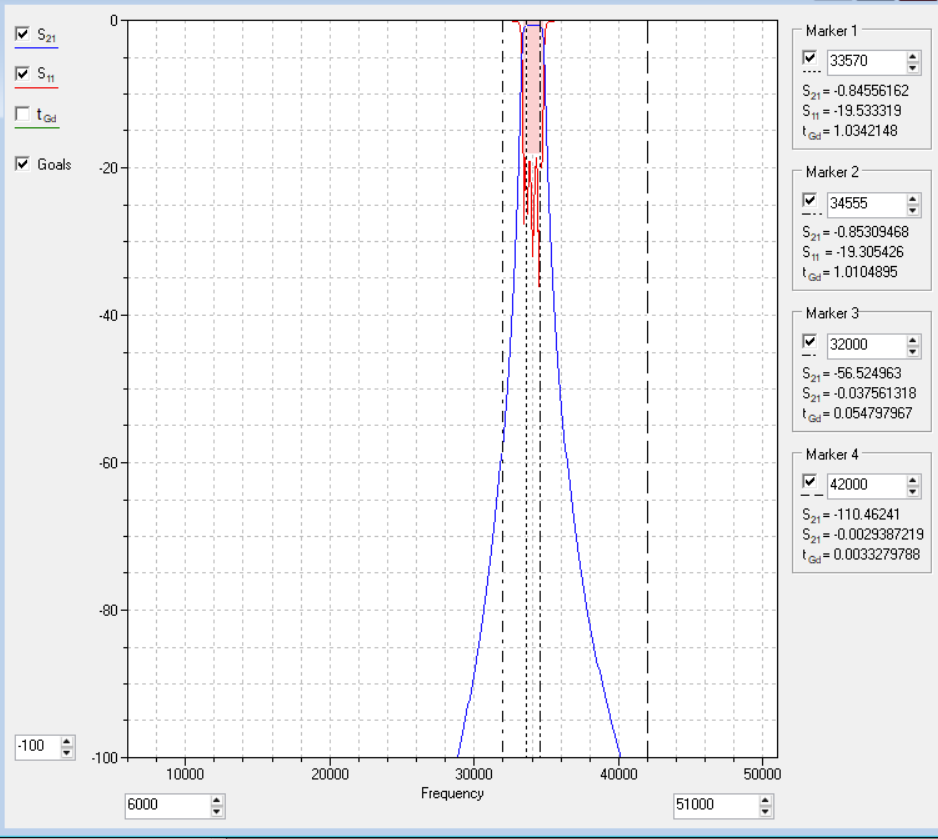

BPF-33570M34555M-292FF Preliminary
Bandpass Filter
Quantic PMI Model BPF-33570M34555M-292FF is a bandpass filter with a 33.57 to 34.555 GHz pass band that withstands 30 dBm maximum input power and exhibits 3 dB maximum insertion loss.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 34.0625 |
| Bandwidth (GHz): | 33.570 to 34.555 |
| Insertion Loss (dB): | 3 dB Max |
| Input Power (dBm): | 30 dBm Max |
| Rejection: | 45 dB Min @ 7.445 to 8.43 GHz 40 dB Min @ 14.890 to 19.665 GHz 25 dB Min @ 22.335 to 32 GHz 60 dB Min @ 42 GHz 70 dB Min @ 49.445 to 50.43 GHz |
| VSWR: | 1.8:1 Max |
| Connectors: | 2.92mm Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +85 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
