BPF-3D25G-87D1M-SFF Active
Bandpass Filter

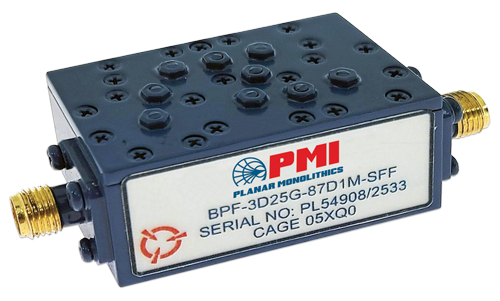

PMI Model BPF-3D25G-87D1M-SFF is a bandpass filter centered at 3.25 GHz with a 3.20645 to 3.29355 GHz passband and a maximum insertion loss of 1.1 dB. This unit is housed inside a small 1.63" x 1.0" x 0.7" package outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 3.25 |
| Bandwidth (GHz): | 3.20645 to 3.29355 |
| Insertion Loss (dB): | 1.1 dB Max |
| Input Power (dBm): | 40 dBm Max |
| Rejection: | 66 dBc Min @ DC to 3 GHz 69 dBc Min @ 3.5 to 7 GHz |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA Female |
| Size: | 1.63" x 1.00" x 0.70" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +70 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
