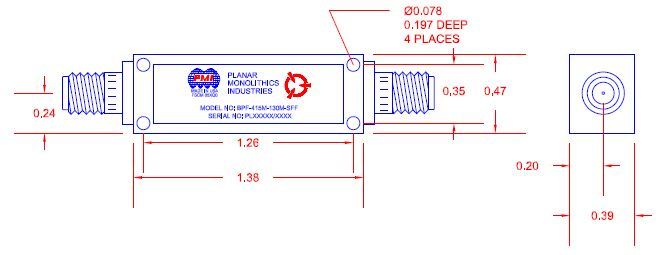

BPF-415M-130M-SFF

PMI Model No. BPF-415M-130M-SFF is a band pass filter that operates over the frequency range of 350 to 480 MHz. It has a maximum insertion loss of 1.5 dB and a maximum VSWR of 1.5:1. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 415 MHz
Frequency Range (-3 dB Bandwidth): 350 to 480 MHz
Insertion Loss: 1.5 dB max.
Bandwidth: 130 MHz
Input Power: 1 W max.
VSWR: 1.5:1 max.
Passband Ripple: ±1.5 dB max.
Impedance: 50 Ohms
Connectors: SMA (F)
Finish: Painted Blue
Rejection @ DC to 330 MHz: 30 dBc min.
Rejection @ 500 to 1200 MHz: 30 dBc min.
Environmental Ratings:
Temperature: -40°C to +70°C (Operating)
-65°C to +125°C (Storage)
Humidity: MIL-STD-202, Method 103B Cond B.
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
