BPF-437D5M542D5M-SFF-2 Preliminary
Bandpass Filter

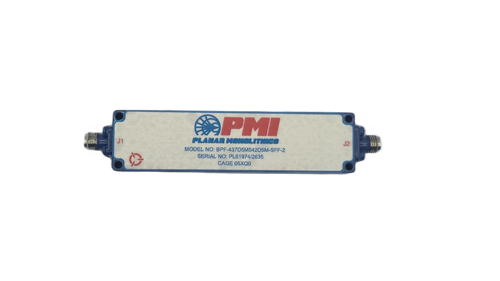

Quantic PMI Model BPF-437D5M542D5M-SFF-2 is a bandpass filter with a 0.4375 to 0.5425 GHz pass band that features 2 dB maximum insertion loss, 0.5 dB maximum pass band ripple, and SMA female connectors.

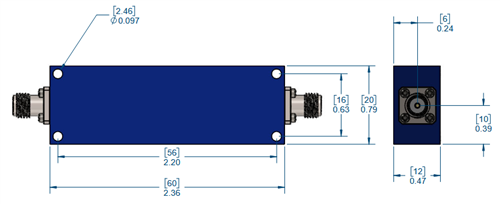

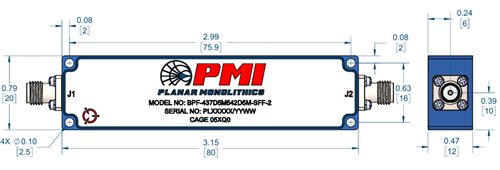

Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 0.49 |
| Bandwidth (GHz): | 0.4375 to 0.5425 |
| Insertion Loss (dB): | 2 dB Max |
| Input Power (dBm): | 37 Max |
| Passband Ripple: | 0.5 dB Max |
| Rejection: | 20 dB Min @ 0.875 to 1.6275 GHz 50 dB Min @ 2.155 to 3.34 GHz 70 dB Min @ 5.9375 to 6.68 GHz 50 dB Min @ 6.92 to 20 GHz |
| VSWR: | 1.6:1 Max |
| Connectors: | SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +70 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
