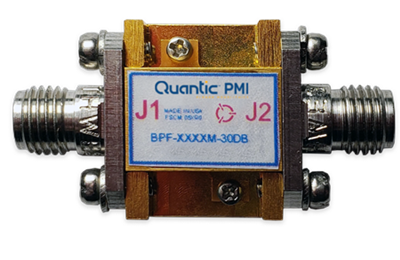

BPF-4457M-30DB

Band Pass Filter

PMI Model No. BPF-4457M-30DB is a 4457 MHz Band Pass Filter that is small and has great rejection.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 4457 MHz
Insertion Loss: 8 dB max.
Bandwidth: 210 MHz typ.
3 dB Bandwidth: 210 MHz Typ
Rejection: -30 dBc Min @ <4057 MHz & >4857 MHz
Connectors: SMA (F)
Finish: Painted Blue
VSWR Over 90% of the Passband: 2.0:1 Max
3 dB Passband Insertion Loss: 8 dB Max
