BPF-45M-15M-PP
Surface Mount Bandpass Filter

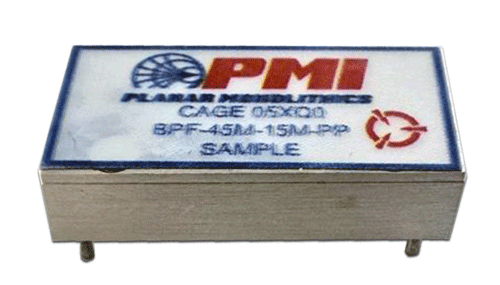

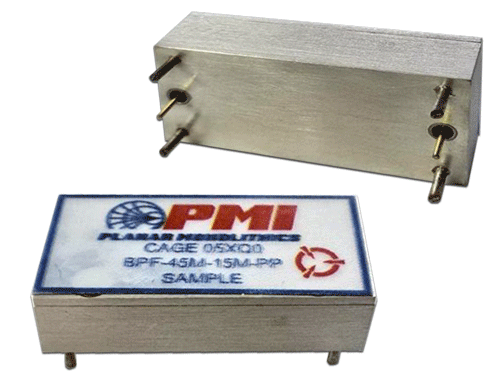

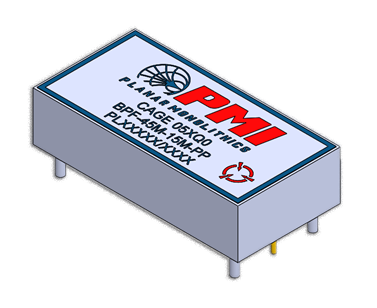

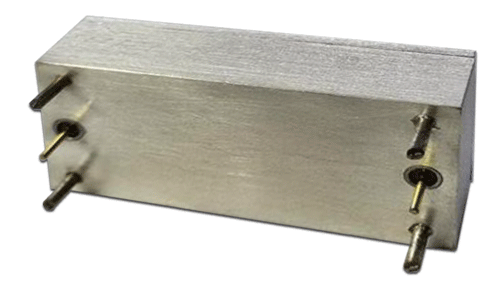

PMI Model BPF-45M-15M-PP is a Surface mount Bandpass Filter that is designed with a center frequency of 0.045 GHz, with a minimum bandwidth of 0.015 GHz, and an insertion loss of 2.5 dB. Package size is 1.0" x 0.5" x 0.24' with four ∅0.036" grounding pins & two ∅0.02 RF pins.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.045 |
| Bandwidth (GHz): | 0.015 Min (3 dB BW) |
| Insertion Loss (dB): | 2.5 dB Max (0.04 to 0.05 GHz) |
| Stop Band Attenuation: | 20 dBc Min @ 0.06 GHz, 30 dBc Min @ 0.03 GHz, 40 dBc Min @ 0.09 GHz |
| Power Handling (dBm): | 30 dBm CW Max 33 dBm peak Max (1 μs PW, 0.1% DC) |
| Passband Ripple: | 0.5 dB P-P Max (0.04 to 0.05 GHz) |
| Return Loss in BW: | 14 dB Min |
| Connectors: | PC Pin Mounting GND: ∅0.036" RF: ∅0.02 |
| Size: | 1.00" x 0.50" x 0.24" |
| Finish: | Silver Plated |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -40 °C to +85 °C |
