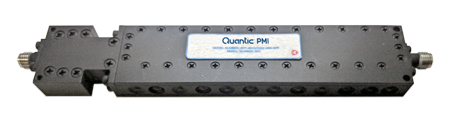

BPF-4D4G7D8G-3400-SFF Active
Bandpass Filter
Quantic PMI Model BPF-4D4G7D8G-3400-SFF is a bandpass filter with a 3 dB bandwidth of 3.4 GHz minimum covering 4.4 to 7.8 GHz. Package size is 4.69" x 0.95" x 0.40" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 6.1 |
| Frequency Range, -3 dB Bandwidth (GHz): | 4.4 to 7.8 |
| Bandwidth (GHz): | 3.4 Min |
| Insertion Loss (dB): | 3 dB Max |
| Rejection: | -60 dBc @ 0.1 - 4 GHz, -60 dBc @ 8.2 - 18 GHz |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 4.69" x 0.95" x 0.40" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
