BPF-5025M5175M-30-SFF Preliminary
Band Pass Filter

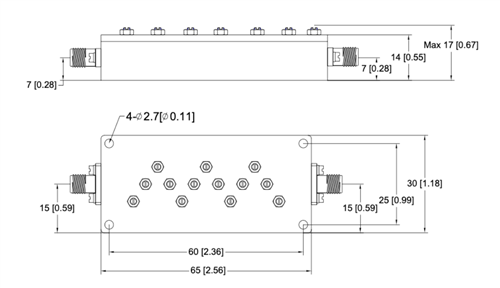

PMI Model BPF-5025M5175M-30-SFF is a 5.025 to 5.175 GHz band pass filter featuring sharp rejection, low insertion loss, and 40 dBm power handling. Housing size is 2.56" x 1.18" x 0.67" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 5.1 |
| Bandwidth (GHz): | 5.025 to 5.175 |
| Insertion Loss (dB): | 1.8 dB Max |
| Input Power (dBm): | 40 dBm CW Max |
| Rejection: | 95 dB Min @ DC to 4.57 GHz, 27 dB Min @ 4.57 to 4.763 GHz, 17 dB Min @ 4.763 to 4.985 GHz, 80 dB Min @ 6 to 10.5 GHz, 60 dB Min @ 10.5 to 13 GHz |
| VSWR: | 1.4:1 Max |
| Connectors: | SMA Female |
| Connectors In/Out: | 2.56" x 1.18" x 0.67" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +70 ˚C |
| Temperature (Storage): | -55 ˚C to +125 ˚C |
