BPF-7400-2000-35-SFF-HY Active
Bandpass Filter
Additional Documents

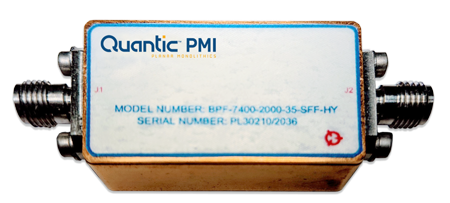

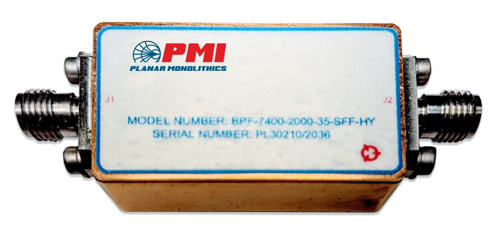

Quantic PMI Model BPF-7400-2000-35-SFF-HY is a bandpass filter with a passband of 6.4 to 8.4 GHz. Package size is 1.42" x 0.80" x 0.40" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 7.4 |
| Bandwidth (GHz): | 2 MHz Min @ -3 dB |
| Insertion Loss (dB): | 5.5 dB Max |
| Insertion Loss (Pass Band): | (-1 dB) 5.5 dB Max |
| Rejection: | -35 dBc Min 0.1 to 6 GHz -35 dBc Min 8.8 to 12 GHz |
| VSWR in the Pass Band: | 2.0:1 Max Over 90% of Passband |
| Connectors: | SMA Female - Field Replaceable |
| Size: | 1.42" x 0.80" x 0.40" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -45 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
