BPF-7445M8430M-SFF-2 Preliminary
Bandpass Filter
Quantic PMI Model BPF-7445M8430M-SFF-2 is a bandpass filter with a 7.445 to 8.43 GHz pass band that withstands 30 dBm maximum input power and exhibits 3 dB maximum insertion loss.

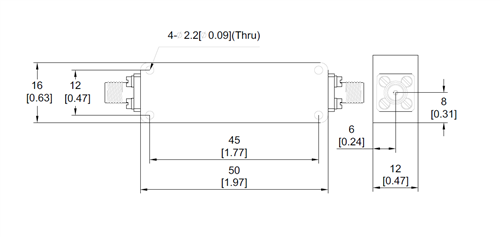

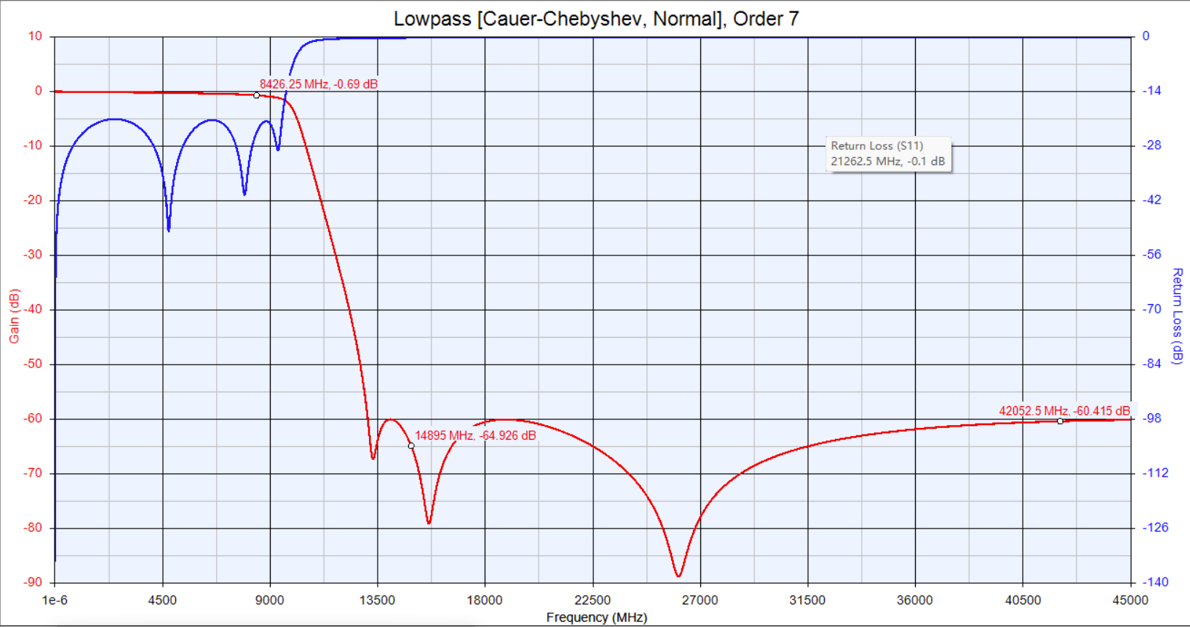

Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 7.9375 |
| Bandwidth (GHz): | 7.445 to 8.43 |
| Insertion Loss (dB): | 3 dB Max |
| Input Power (dBm): | 30 dBm Max |
| Rejection: | 40 dB Min @ 14.89 to 42 GHz |
| VSWR: | 1.8:1 Max |
| Connectors: | SMA Female |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +85 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
